- OPT-1 Oil Pressure and Temp Instrument

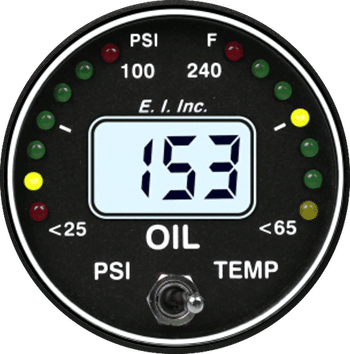

OPT-1 Oil Pressure and Temp Instrument
FAA Approved
- FAA STC’d, TSO’d as a Primary Replacement.
Interpret Your Readings Faster
- You won’t need your glasses to view the large backlit LCD.
- Redlines and Cautionary zones will catch your attention as the Red and Yellow LEDs light up on the analog arcs.
Accurate, Dependable & Easy To Use
- Electronics International consistently has been a leader in digital engine instrumentation since 1979.
Product Overview
Prices
Retail Prices
Included in the package:
- OPT-1 Oil Pressure & Temperature Instrument
- 8′ Thermocouple Extension Cable
- P-120 Oil Temperature Probe
- PT-100GA Pressure Transducer
- Wire Harness
- Installation/Operating Instructions
- STC
Description
Package
Retail Price
OPT-1 Package
OPT-1
$760
Lead Time: Usually ships within 3–5 business days.
Specifications
Specifications
Dimensions
2.50″ H x 2.50″ W x 3.65″ D , 2.25″ Bezel
Weight
10 oz (OPT-1 Oil Pressure & Temperature Instrument Only)
Power Requirements
7.5 to 35 Volts, Typical: 0.3 amps @ 12 Volts
Display
- Viewable in direct and indirect sunlight.
- Two 90 degree analog arcs for quick reference.
Backlight
Fully backlit and dimmable for night flights.
Certifications
FAA TSO’d, STC’d
