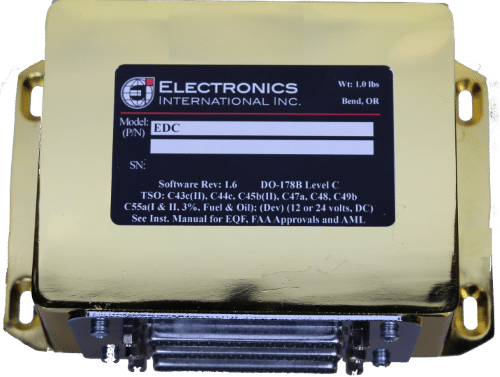

EDC-33 Smart Engine Data Converter

EDC-33 Smart Engine Data Converter

  • Analog & Digital Signal Conversion
  • FAA TSO’d to DO-160G & DO-178 Level C
  • Converts Raw Engine Data to Formatted Serial Data
SKU: EDC-33 Categories: , , ,

Analog & Digital Signal Conversion

  • Converts raw engine data to formatted serial data.

Precise, Stable & Accurate

  • FAA TSO’d to DO-160G & DO-178 Level C

Designed and Built in the USA

  • Electronics International consistently has been the leader in digital engine instrumentation since 1979.

EDC-33 Overview

The EDC-33 (Engine Data Converter) is sometimes referred to as a Data Acquisition Unit (DAU) and has a broad range of applications. Its main purpose is to monitor the probes, transducers and sensors mounted on the engine and airframe. It then processes this data and outputs it on a serial bus. This allows a Display Unit or MFD to display the data without having to perform the intense processing required in a set timeframe.Also, annunciators and status switches can be monitored.

The EDC-33 can be used on piston, turboprop or jet aircraft as well as helicopters. If an EEC or FADC system needs to be monitored, check out our BC-5 (Bus Converter).

Functions Available

Ng Strain Tail Roter Gear Box Temp Oil Temp Ballon Pressure RPM
Np Oxygen Super Heat Landing Gear Hydraulic Pressure Yoke Position Carb Temp
ITT Cabin Alt EGT Annunciators Fuel Level Oil Pressure Various Switch Position
Torque Cabin Diff Pressure CGT Throttle Fuel Pressure OAT Many Others, Contact EI
G-Sensor Main Rotor Angle of Attack Amps Fuel Flow CHT
Vibration Frequency Flap Position IAT Vacuum DC Volts
Elevator Trim Aileron Trim Rudder Trim TIT Manifold Pressure AC Volts

Smart Conversions

Processed and Calibrated Data Out

  • Analog and pulse signals are received and processed using an array of algorithms that massage the data into readable engineering units.
  • The EDC can provide simple linear conversions or mapped linearization for non-linear inputs or complex calculations.
  • Processed data is output via a number of serial protocols.
  • A receiving display unit only has to display the processed data as it is received.

Optimal Solution for Custom Monitoring Applications

  • Bluetooth capable for wireless in-field calibration.
  • The formatted data provides an easy integration to any display head without further processing.

Contact Us

Bring Us Your Project

  • For more information on how the EDC-33 can help you, contact us by phone at (541) 318-6060 or by email at Support@iFlyEi.com.

Specifications

Dimensions
5.85” L x 3.71” W x 2.35” H

Weight
1.0 Lb

Power Requirements
7.5 to 50 Volts
Typical: 0.1 amps @ 12 Volts

Certifications
FAA TSO’d to DO-160G & DO-178 Level C

Typical Input Configurations

  • Model EDC-33P: 1-Volt Channel, 1-Amp Channel, 1-Fuel Flow Channel, 6-Pressure Channels, 17-Temp Channels, 4-Resistive Fuel Level Channels, 4-Capacitive Fuel Level Channels and 2-RPM Channels.
  • Model EDC-33T-XX: 1-Volt Channel, 1-Amp Channel, 1-Fuel Flow Channel, 9-Pressure Channels, 13-Temp Channels, 4-Resistive Fuel Level Channels or 4-Capacitive Fuel Level Channels and 2-RPM Channels.

Note: For both models, Temp, Fuel Level and Pressure channels can be used instead to monitor other functions or annunciators.
