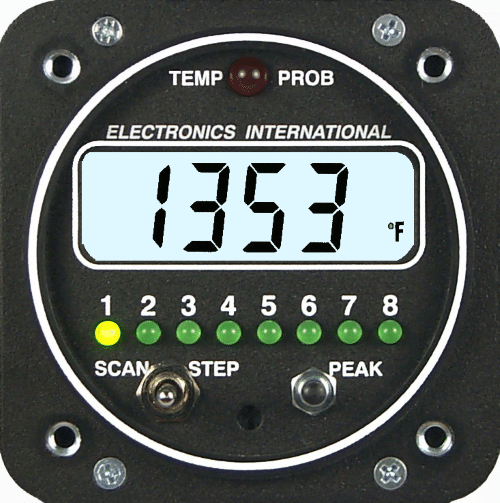

SR-8A Smart Engine Analyzer

SR-8A Smart Engine Analyzer

$0.00

  • Non-Primary Replacement
  • 2 1/4″ Flush Mount
  • Monitor Up To 8 Different Temperatures Including EGT, CHT, TIT, OAT, Carb, Cowl, Oil, Plus More.

SKU: SR-8A Category:

FAA Approved Instrument

  • STC’d as non-primary replacement.

Easy To Install & Versatile

  • The SR-8A fits into one of your existing 2 1/4″ holes.
  • Monitor up to 8 temperatures including EGT, CHT, TIT, OAT, Carb Temp, Cowl Temp, Oil Temp and virtually any other temperature.
  • Step through each temperature manually or place the instrument in scan mode.
  • Large, crisp, backlit display, which is viewable in direct sunlight.

Accurate, Dependable & Easy To Use

  • Electronics International consistently has been the leader in digital engine instrumentation since 1979.
  • Designed and built in the USA.

Automatically finds the hottest EGT or CHT. Factory-set EGT Over-Temp Limit (1,650°F). Factory-set EGT Under-Temp Limit (1,100°F). Factory-set CHT Over-Temp Limit (500°F). Differential Limit set from back panel at 95°F or 195°F.

Retail Prices

All packages include:

  • SR-8A Instrument
  • Operating & Installation Instructions
  • STC with AML
  • Temperature Probes
  • 8′ Extension Cables
Description Package Retail Price
SR-8A Instrument Only SR-8A $498
SR-8A 4-Cylinder Package with 4-EGT (P-110) & 4-CHT (P-100) Probes and 8′ extension cables. SR-8A-4 $1,098
SR-8A 4-Cylinder Package with 4-EGT (P-110) & 3-CHT (P-100) Probes, 1 Piggyback CHT (P-102) Probe and 8′ extension cables.* SR-8A-4G $1,098
SR-8A 6-Cylinder Package with 6-EGT (P-110) & 2-CHT (P-100) Probes and 8′ extension cables. SR-8A-6 $1,098

*SR-8A-4G: this package is designed for 4-cylinder engines with a primary CHT instrument already installed.

Available Options

The SR-8A features 8 input channels. Any of the following options can be added at any time to any unused channel. Each option uses 1 input channel.

OAT or Carb Temp, 1/4″ – 28 thread, 8′ cable, P-128-XCO-8 (add $98)

Secondary Oil Temp, 5/8″ – 18 thread probe, 8′ cable, P-120-XCO-8 (add $98)

Secondary TIT or Oil Temp, 1/8″ NPT adjustable depth, 8′ cable, P-111-XCO-8 (add $98)

Secondary TIT or Oil Temp, 7/16″ – 20 thread adjustable depth probe, 8′ cable, P-112-XCO-8 (add $98)

Secondary TIT or Oil Temp, 1/4″ NPT adjustable depth probe, 8′ cable, P-114-XCO-6 (add $98)

Specifications

Dimensions
2.5” x 2.5” x 5.35” Deep, 2 1/4” Flush Mount

Weight
Instrument: 10 oz
Probes and Cables: 3.5 oz each probe & cable

Power Requirements
7.5 to 30 Volts
Typical: 0.1 amps @ 12 Volts

Intensity Control
Independent control lines allow pilots to adjust the intensity of both the Green Indicator Lights and the LCD Backlight during instrument operations.

Environmental
Meets TSO C43a

Certifications
FAA STC’d
