The CGR-30 provides a color display in a standard 3 1/8” aircraft mount. It can display functions on the Main Screen and on a Secondary Screen. There are six annunciators at the top of the Main Screen which can be used to display external functions or functions displayed on the Secondary Screen.
When viewing the Secondary Screen there are eight additional annunciators provided. These annunciators can be used to display external functions or functions on the Main Screen

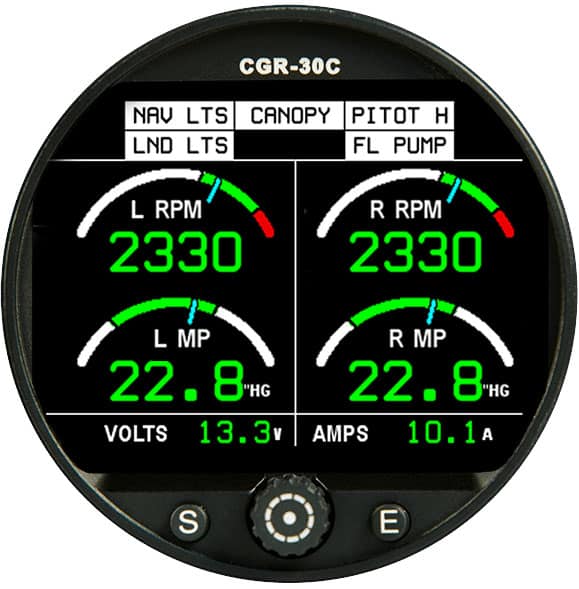

CGR-30 Main Screen
Configuration Examples:

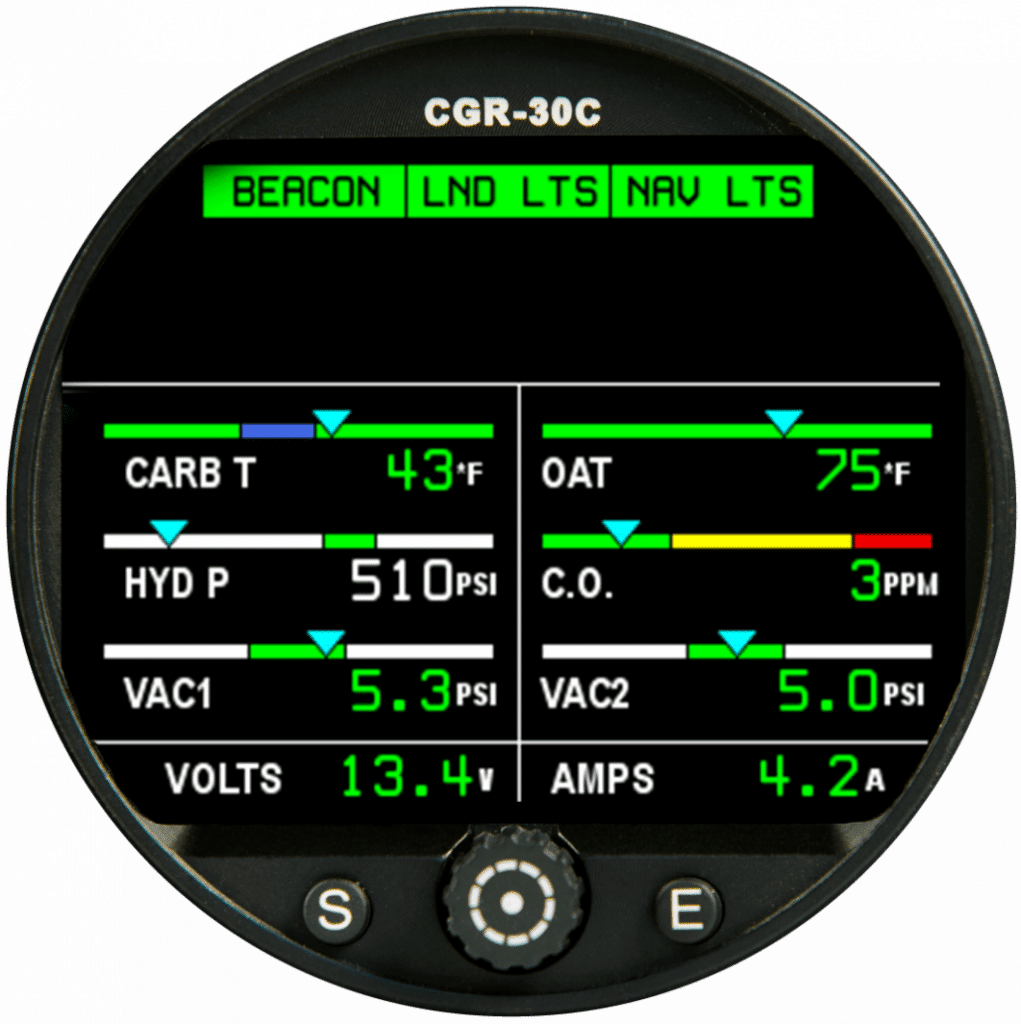

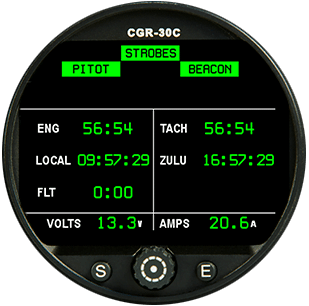

CGR-30 Secondary Screen
Configuration Examples:
CGR-30 Features
Main Screen:
- Six Annunciators can be used to display Cautions, Warnings, or Status Indications.
- Annunciators can be used to display Secondary Screen Functions or External Functions
- The two functions at the bottom of the Main Screen are digital-only and also shown on the bottom of the Secondary Screen.
- Any Function can be displayed in any location.
- Functions can be displayed in Arcs, Strips, Digital Only, or as an Annunciator.
Secondary Screen:
- The six Annunciators from the Main Screen are provided along with eight additional annunciators.
- Six functions can be displayed in Arcs, Strips, Digital Only, or as an Annunciator.
- Any Function can be displayed in any location.
Additional Features:
- Data Recording.
- Real-Time-Data-Out (RTDO) Port.
- Upload Configuration Files and download Flight Data via the flying USB Port.
- When interfaced with the BC-5 the CGR-30 can display data on almost any digital bus.
- When interfaced with the EDC-33 the CGR-30 can display signals from almost any transducer, probe, or sensor.
- Scaling and Color Ranges can be configured for every function.
- FAA TSO’d.
- Contact Electronics International inc. and let us help you with a configuration that meets your requirements.
Specifications
Dimensions
3.25” x 3.25” x 4.45” Deep, 3 1/8” Flush Mount
Weight
1.1 Pounds (Instrument Only)
Power Requirements
7.5 to 30 Volts
Typical: 0.2 amps @ 12 Volts, 0.1 amps @ 24 Volts
Display
Active Matrix, Sunlight Readable
Backlight
Fully Dimmable for Night Flights
USB Port
Data Download and Software Updates
Internal Storage
Up to 1,500 most recent flights stored. All monitored functions are stored up to three times per second. Recorded flight data can be easily downloaded via USB port.
Certifications
FAA TSO’d
Contact Us
Bring Us Your Project
Contact our OEM Manager Dan Bennett today at DBennett@iFlyEi.com to discover solutions for your application.
