VI-2µFA SureFly Ignition Interface
Questions?
8am–4:30pm PST M–F
Sorry, We’re Closed
Product Overview

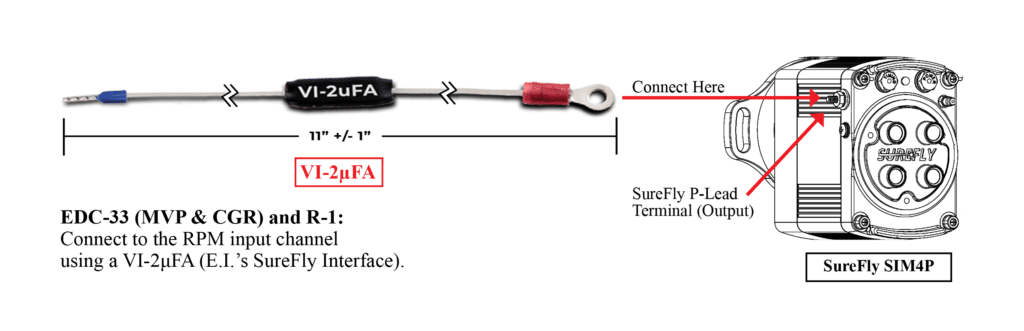

Connection to E.I. Instrument Instructions
VI-2µFA SureFly Interface
EDC-33 Bottom Connector (MVP & CGR)

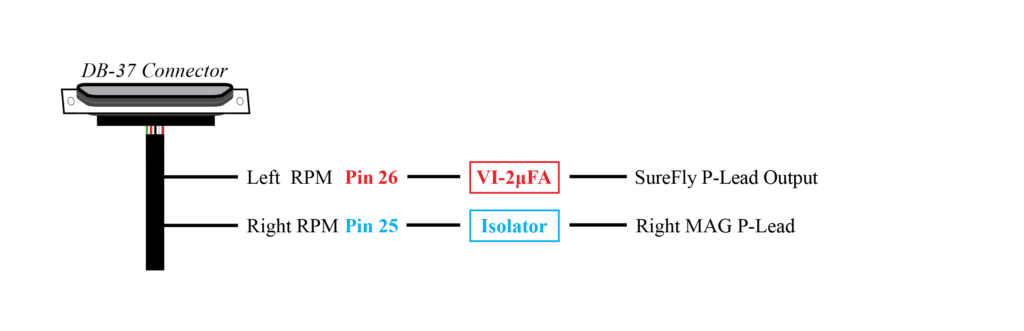

SureFly replacing the Left MAG
EDC-33 Bottom Connector (MVP & CGR)

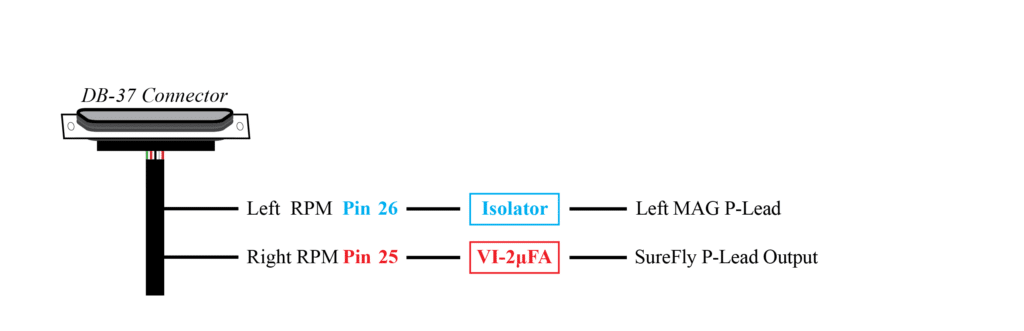

SureFly replacing the Right MAG

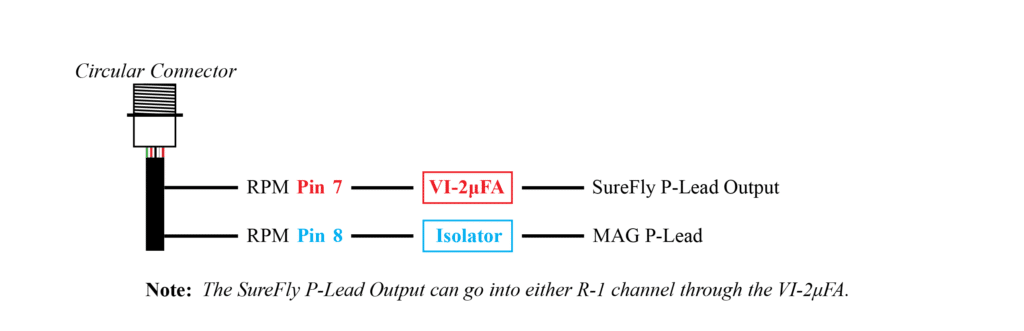

R-1 Circular Connector
Prices
Retail Prices

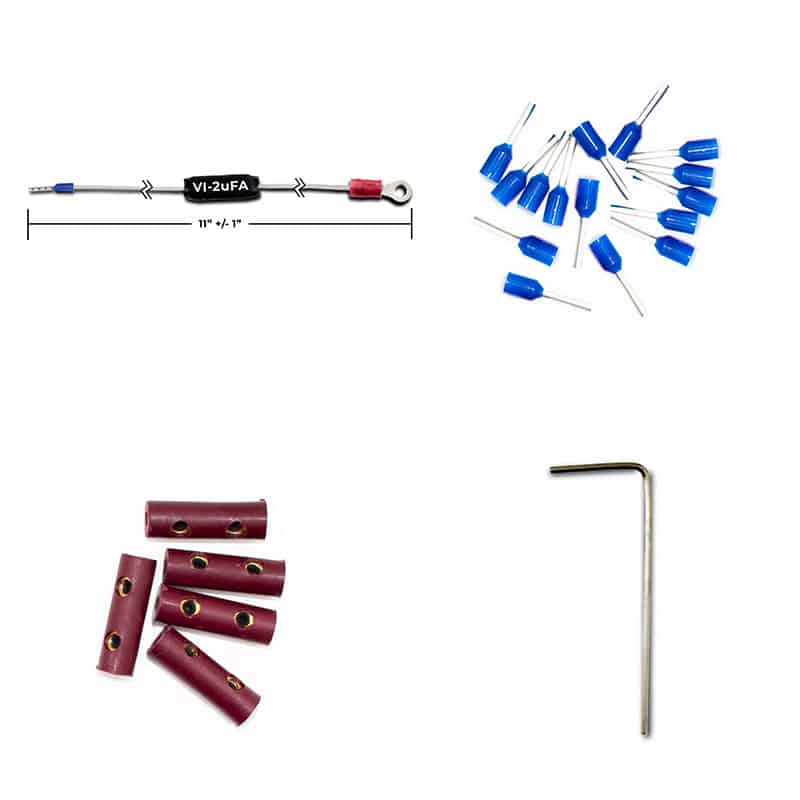

Included:
- E.I. VI-2µFA SureFly Interface
- 15 Blue 20ga Ferrules
- 5 OLC-2 Connectors
- 0.05″ Hex Wrench
- VI-2µFA Connection Instructions
- E.I. Wire Connections Guide
Description
Package
Retail Price
VI-2µFA SureFly Interface
VI-2uFA
$48
VI-2µFA SureFly Interface with Wire Connector Package
VI-2uFA-WCP
$128
Two VI-2µFA SureFly Interface (for Twin Engines)
VI-2uFA-2
$96
Two VI-2µFA SureFly Interface (for Twin Engines) with Wire Connector Package
VI-2uFA-2-WCP
$180
Lead Time: Usually ships within 2–3 business days.
Additional Option:
Option Includes:

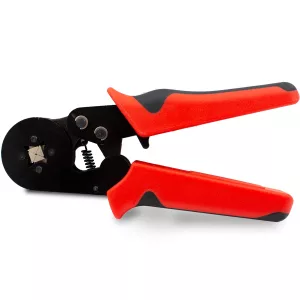

- Crimper
- 80 Ferrules (20 ga)
- 80 Ferrules (24 ga)
- 40 OLC-2 Connectors
- Hex Wrench
- Wiring Guide
Specifications
Videos
Documents
Documents & Manuals
