CGR-30P Engine Monitor – Basic

CGR-30P Engine Monitor – Basic

  • Primary Replacement
  • 3 1/8″ Flush Mount
  • Replace Your Tachometer (RPM), EGT/CHT Bar Graph, Fuel Flow + More.
Category:

FAA Approved Primary Replacement

  • Remove your old engine instruments, including RPM, Manifold, EGT/CHT, Fuel Level, Oil Pressure and more!
  • Upgrade your aircraft panel with the best engine analyzer available.

Easy To Install

  • CGR-30P fits into your existing 3 1/8″ hole (remove your old tach).
  • Engine Data Converter (EDC) accepts all inputs. Only 2 wires run to the back of the instrument.

Accurate, Dependable & Easy To Use

  • Electronics International consistently has been the leader in digital engine instrumentation since 1979.
  • Designed and built in the USA.

Data Recording of Every Flight

  • All monitored functions are stored up to three times per second.
  • Up to 1,500 most recent flights stored, downloaded via a USB port.

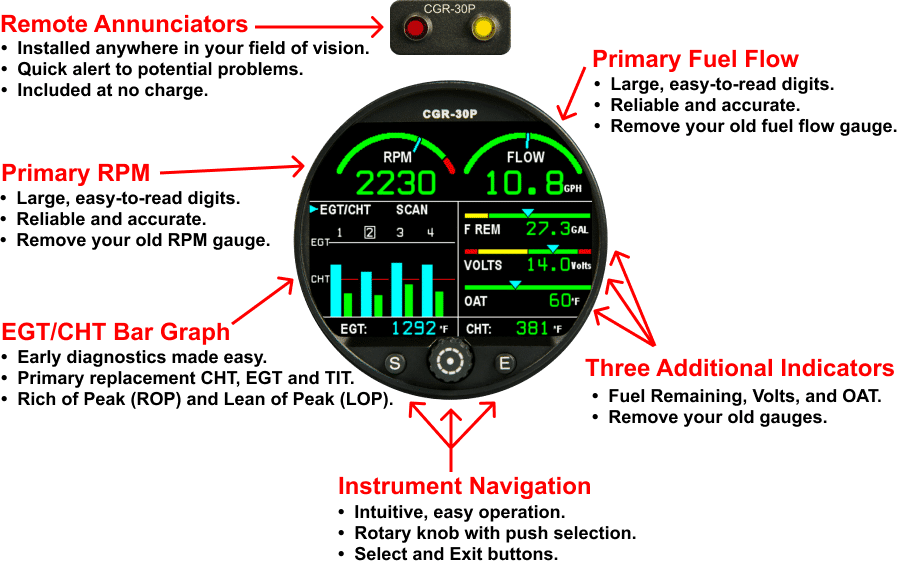

CGR-30P Main Screen

The Main Screen displays the Tachometer and Fuel Flow in large analog arcs at the top of the instrument, providing immediate and quick reference values. The digital display provides accuracy in monitoring engine functions.

The CGR Main Screen also features a complete, primary replacement EGT/CHT Bar Graph Engine Analyzer. Each cylinder is monitored by the CGR. If any EGT or CHT temperature rises above or below programmed limits, the CGR provides an immediate alert. The EGT/CHT Bar Graph Analyzer features both Lean-of-Peak and Rich-of-Peak Modes for easy engine leaning. The CGR-30P will let you know as each cylinder peaks, at what temperature each cylinder peaks, and how far below Peak Temperature each cylinder is operating.

To the right of the EGT/CHT Bar Graph Analyzer, the CGR-30P displays Fuel Remaining, Volts, and OAT.

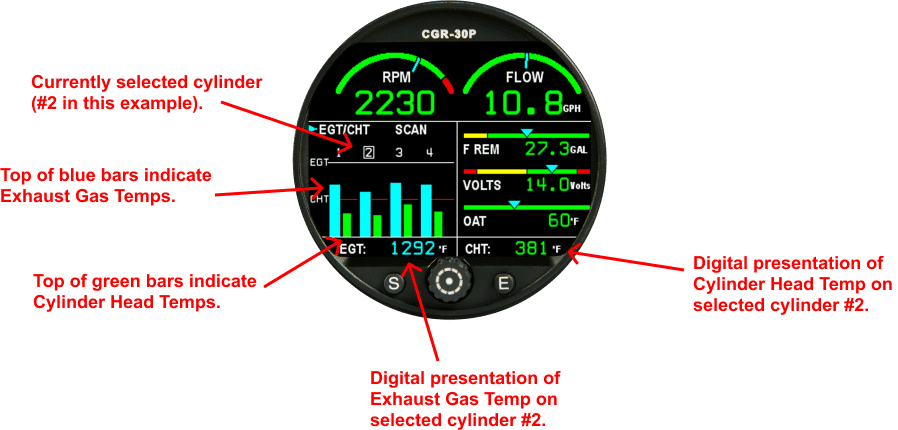

EGT/CHT Bar Graph

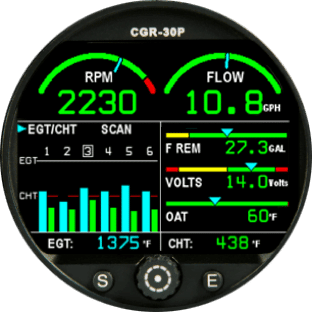

The CGR-30P features a state-of-the-art, full-color bar graph to assist with ROP/LOP leaning. Additionally, the bar graph provides both “normalized” and digital readout screens. No other bar graph in the industry comes close to providing the number of options the CGR-30P offers.

Standard Bar Graph

Normalized Mode

Normalized Mode

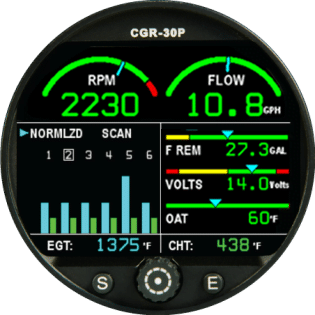

(showing abnormal EGT #5)

The Bar Graph can be easily “Normalized” to create a baseline from which to monitor in-flight engine temperature changes. When Normalized, all EGT or CHT bars will be displayed as equal in height. If any cylinder’s EGT or CHT changes in relation to the other cylinders, that cylinder’s bar height will no longer be shown at the same height as the others. Such information can be an essential indicator of engine problems.

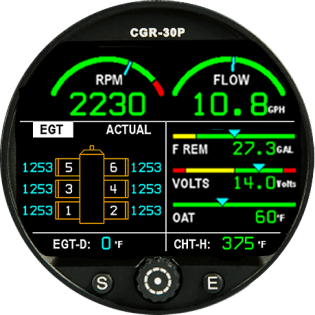

Digital EGT View

It’s easy to switch from the Bar Graph Display to the Digital View of your engine, which shows either all of your engine’s Cylinder Head Temperatures or all of its Exhaust Gas Temperatures.

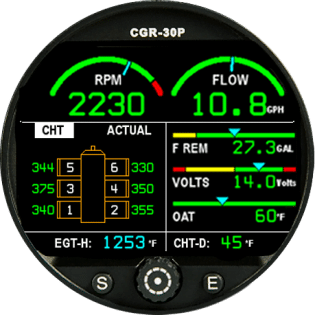

Digital CHT View

Easy To Use Leaning Mode

Lean-of-Peak Mode

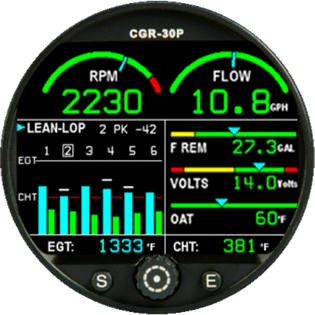

For Lean-of-Peak Operations, the CGR-30P informs the pilot as each cylinder peaks, at what temp each cylinder peaks, and how far from peak temp each cylinder is. For quick reference, every cylinder’s peak information is constantly displayed and “tattletale bars” are shown above each cylinder, indicating where each cylinder peaked.

Fuel Flow is displayed during the entire leaning process to assist in finding the optimal fuel-to-air mixture.

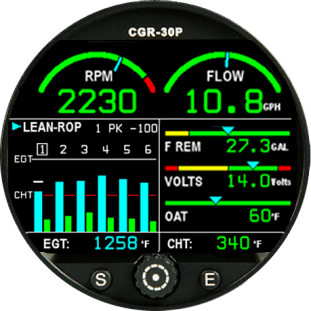

Rich-of-Peak Mode

The number of degrees below Peak EGT is displayed on the first cylinder to Peak.

Fuel Flow is displayed during the entire leaning process to assist in finding the optimal fuel-to-air mixture.

Secondary Screen

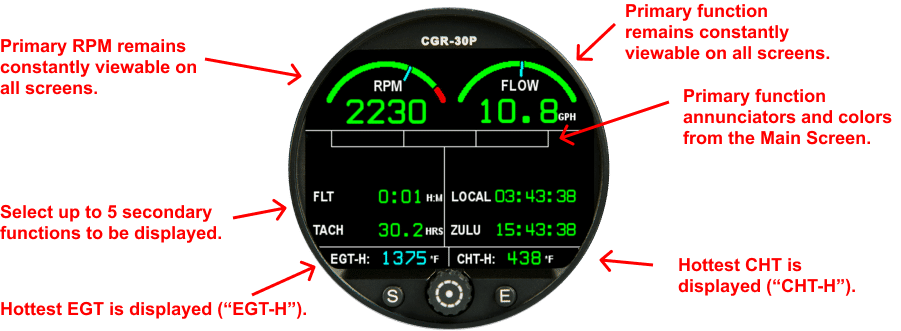

The Secondary Screen is intended to display functions which do not need to be displayed continuously.

Fuel Management & GPS Interface

Fuel Screen
Estimated Used

Fuel Screen
Estimated Time

Fuel Screen
Estimated at Destination

Fuel Screen
Fuel Flow

Fuel Management

  • Displays ‘Estimated Fuel Remaining Based on Fuel Flow’.
  • Displays ‘Fuel Used for Flight’ and ‘Since Last Fill-Up’.
  • May enable you to extend your flight time using a number of fuel management tools.

GPS Interface

  • Ties into panel or yoke-mounted GPS.
  • Displays distance and time to empty.
  • Stores GPS data in its recorded flight log.

The Fuel Data Screens provide six sets of data based on Fuel Flow and GPS information. This data includes Range, Distance to Destination, Range After Reaching Destination, Fuel Remaining, Fuel to Destination, Fuel Reserve, Time to Empty, Time to Destination, Time Reserve, Fuel Used for the Flight, Fuel Used Since Fuel Was Added, Economy (MPGs) and Total Fuel Onboard. Much of this data depends on an RS232 connection to your GPS.

Data Recording

  • Records all functions, every flight, up to 3 times per second.
  • See potential issues before they become major problems.

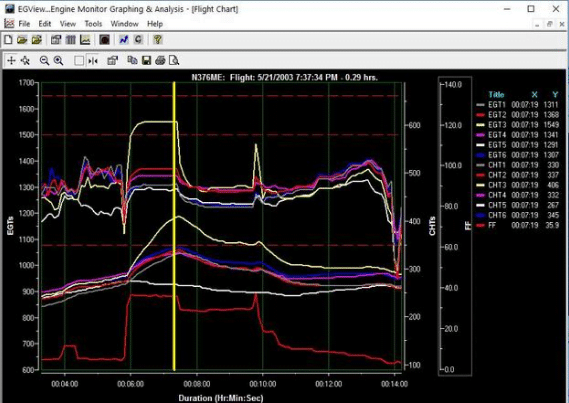

  • Easily chart recorded data using EGView software.
  • Quickly download data with a USB flash drive.

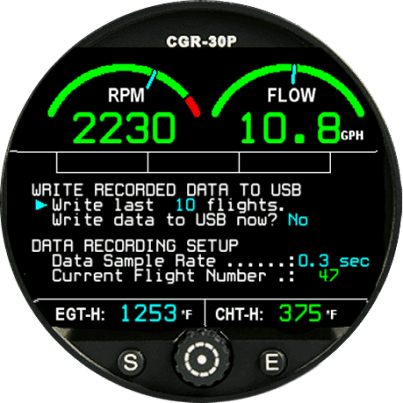

This screen allows you to download Flight Data to a USB flash drive and set the Data Sample Rate. The Data Sample Rate is the time interval between recorded data. The CGR-30P can record up to 1500 flights before it records over the oldest flight first. The USB port may be found mounted in the instrument panel or hanging under it. Flight Data is recorded and downloaded in a comma delimited format. This allows the file to be ported directly into Excel.

CGR-30P Basic Package Retail Prices

Included: RPM, Fuel Flow, EGT/CHT Bar Graph, Fuel Remaining, Volts, OAT, Tach Time, Local Time, Zulu Time, Flight Timer, Fuel Used, GPS/Fuel Flow Data, External Caution & Warning, and Data Recording.

CGR-30P Basic Packages
(prices include probes & cables)

Description Package Retail Price
4-Cylinder Basic Package CGR-30P-4-B $3,696
6-Cylinder Basic Package CGR-30P-6-B $4,442
7-Cylinder Basic Package CGR-30P-7-B $5,242
9-Cylinder Basic Package CGR-30P-9-B $5,442

HUGE installation savings! Use existing probes, cables and flow transducer with our upgrade packages when you trade in your current Engine Analyzer and Fuel Flow instrument.

CGR-30P Basic UPGRADE Packages
(without probes & cables)

Description Package Retail Price
4 or 6-Cylinder Premium UPGRADE Package (requires a trade-in engine analyzer to receive this price) CGR-30P-B-A $3,396
4 or 6-Cylinder Premium UPGRADE Package (requires a trade-in engine analyzer and fuel flow computer to receive this price) CGR-30P-B-AF $3,271

To see more information on upgrade packages visit our UPGRADE page.

CGR-30P Specifications

Dimensions

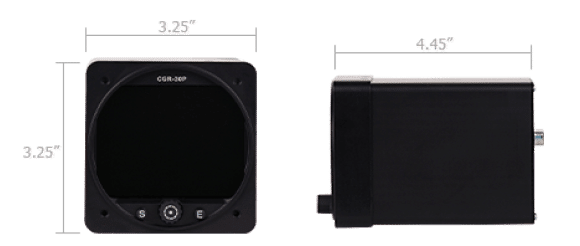

3.25” x 3.25” x 4.45” Deep, 3 1/8” Flush Mount

Weight
1.1 Pounds (Instrument Only)

Power Requirements
7.5 to 30 Volts, Typical: 0.2 amps @ 12 Volts

Display
Active Matrix, Sunlight Readable

Backlight
Fully Dimmable for Night Flights

USB Port
Data Download and Software Updates

Internal Storage
Up to 1,500 most recent flights stored. All monitored functions are stored up to three times per second. Recorded flight data can be easily downloaded via USB port.

Certifications

  • FAA STC’d as Primary Replacement
  • FAA TSO’d to DO-160G
  • FAA DO-178 Level C
  • Transport Canada Civil Aviation (TCCA) Validated STC
  • European Aviation Safety Agency (EASA) Validated STC

Engine Data Converter (EDC-33P) Specifications

Dimensions
5.85” x 3.71” x 2.35” Deep

Weight
1 Pound (Instrument Only)

Power Requirements
7.5 to 30 Volts, Typical: 0.1 Amps

Certifications
FAA TSO’d to DO-160G and DO-178 Level C

Available Channels
1 Volt Channel, 1 Amp Channel, 1 Fuel Flow Channel, 6 Pressure Channels, 17 Temp Channels, 4 Resistive Fuel Level Channels, 4 Capacitive Fuel Level Channels and 2 RPM Channels
