PT-05DIFF – Differential Pressure Transducer
FAA Approved Instruments
- FAA TSO’d, STC’d, PMA’d
- This Pressure Transducer (PT) monitors absolute and differential pressures.
Questions?
8am–4:30pm PST M–F
Open Now
Product Overview
Prices
Retail Price
Packages Include:
- PT-05DIFF Module
- Pressure Transducer Data Sheet
Description
Package
Retail Price
PT-05DIFF Differential Pressure Transducer
PT-05DIFF
$248
Specifications
Specifications
Type
Differential Gauge
Pressure Range
0-5 PSI
Proof Pressure
10 PSI
Burst Pressure
30 PSI
Typical Accuracy
+/- 1%

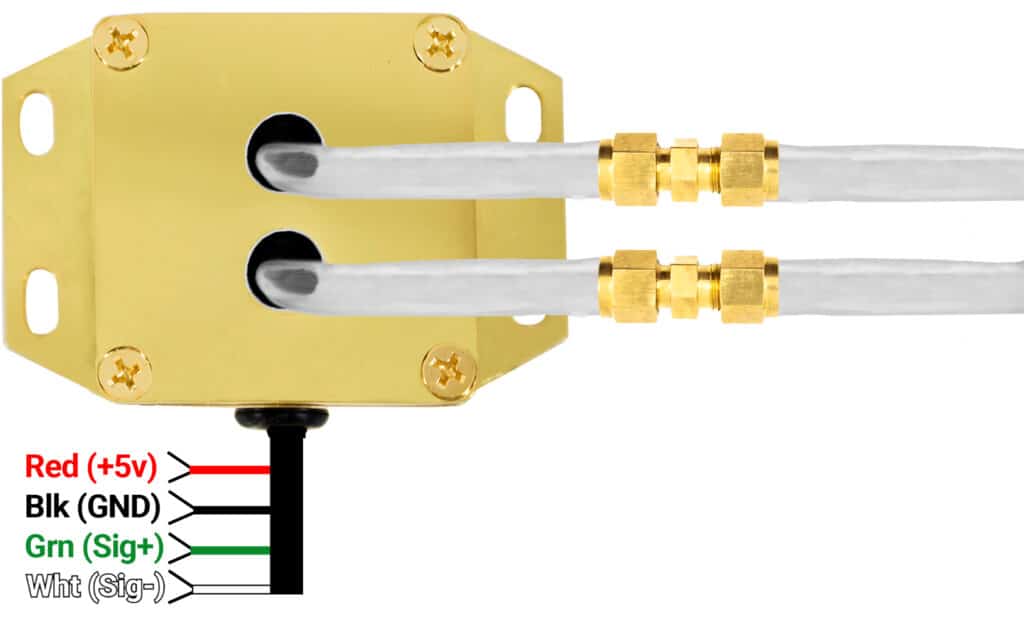

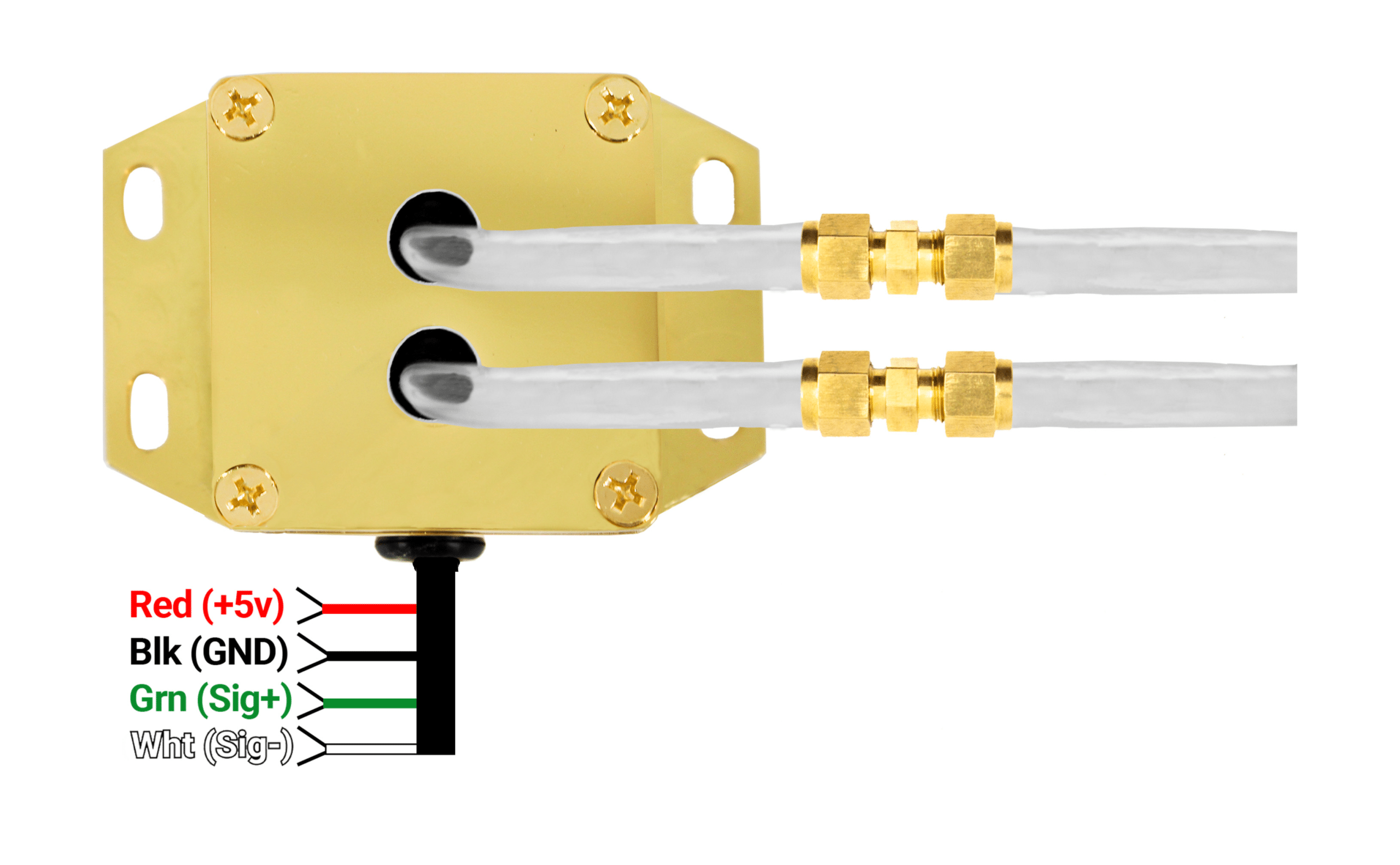

dV (btwn GRN & WHT) @ 5 PSI
50mV @ 10 VDC Input (Ratiometric)
Power Supply
+5 to +16 VDC
Certifications
FAA TSO’d, STC’d, PMA’d
