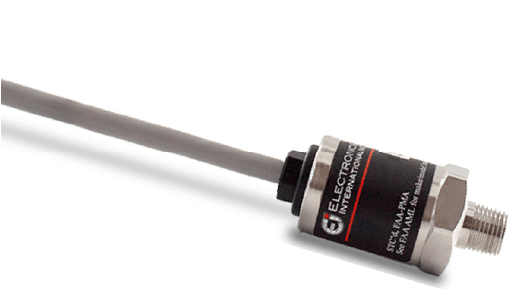

PT-100GA – Pressure Transducer
Questions?
8am–4:30pm PST M–F
Sorry, We’re Closed
Product Overview
Model Comparison
| Model | PT-30GA | PT-100GA | PT-100GA-T Torque | PT-300GA | PT-3000S |
| Working Pressure | 0-100 PSI | 0-300 PSI | 0-100 PSI | 0-300 PSI | 0-3,000 PSI |
| Over Pressure | 200 PSI | 600 PSI | 200 PSI | 600 PSI | 6,000 PSI |
| Burst Pressure | 300 PSI | 900 PSI | 300 PSI | 900 PSI | 9,000 PSI |
| Pressure Type | Gauge | Gauge | Gauge | Gauge | Gauge |
Prices
Retail Price
Packages Include:
- PT-100GA Pressure Transducer

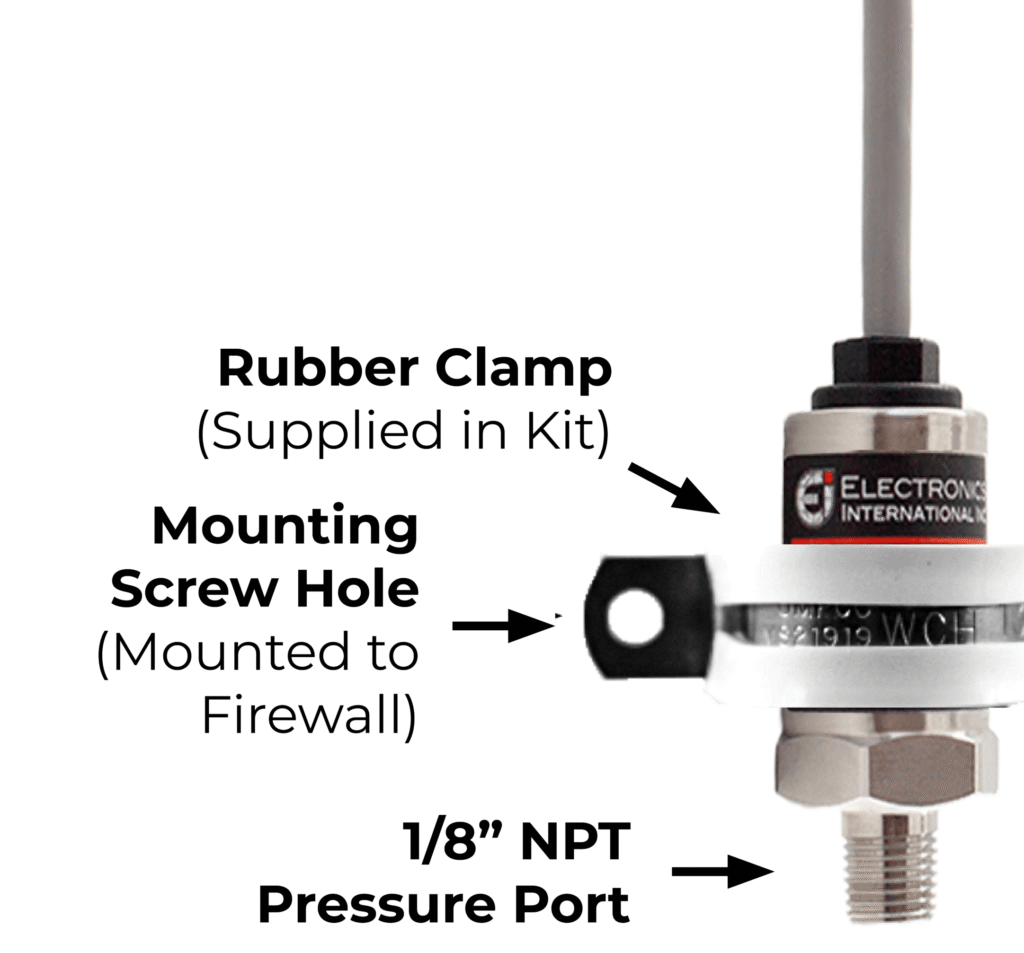

- Larger Mounting Clamp
- Pressure Transducer Data Sheet
Description
Package
Retail Price
PT-100GA Pressure Transducer
PT-100GA
$248

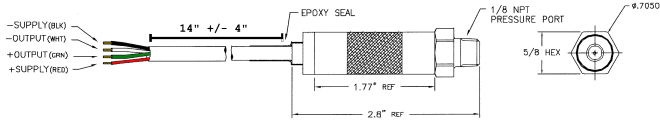

Specifications
Specifications
Type
Gauge Pressure
Working Pressure
0-300 PSI
Over Pressure
600 PSI
Burst Pressure
900 PSI
Accuracy
+/- 1%
dV (btwn GRN & WHT) @ Max Operating PSI
150 mV
Material
316L SS
Power Supply
+5 to +36 VDC
Certifications
FAA TSO’d, STC’d, PMA’d
