UBG-16T Ultimate Bargraph

FAA Approved

FAA-Approved
STC’d as secondary instrument (primary must remain in panel)
Upgrade your aircraft panel with the full color engine analyzer.

Easy To Install

The UBG-16T fits flush into an existing 2 1/4″ hole.
Complete UBG-16T Package includes all probes, sensors, and pre-built cable harnesses.
Upgrade Option: Replaces your old plasma bargraph and uses your existing probes and cables.

Accurate, Dependable & Easy To Use

High-resolution monitoring for every cylinder in the familiar bargraph presentation.

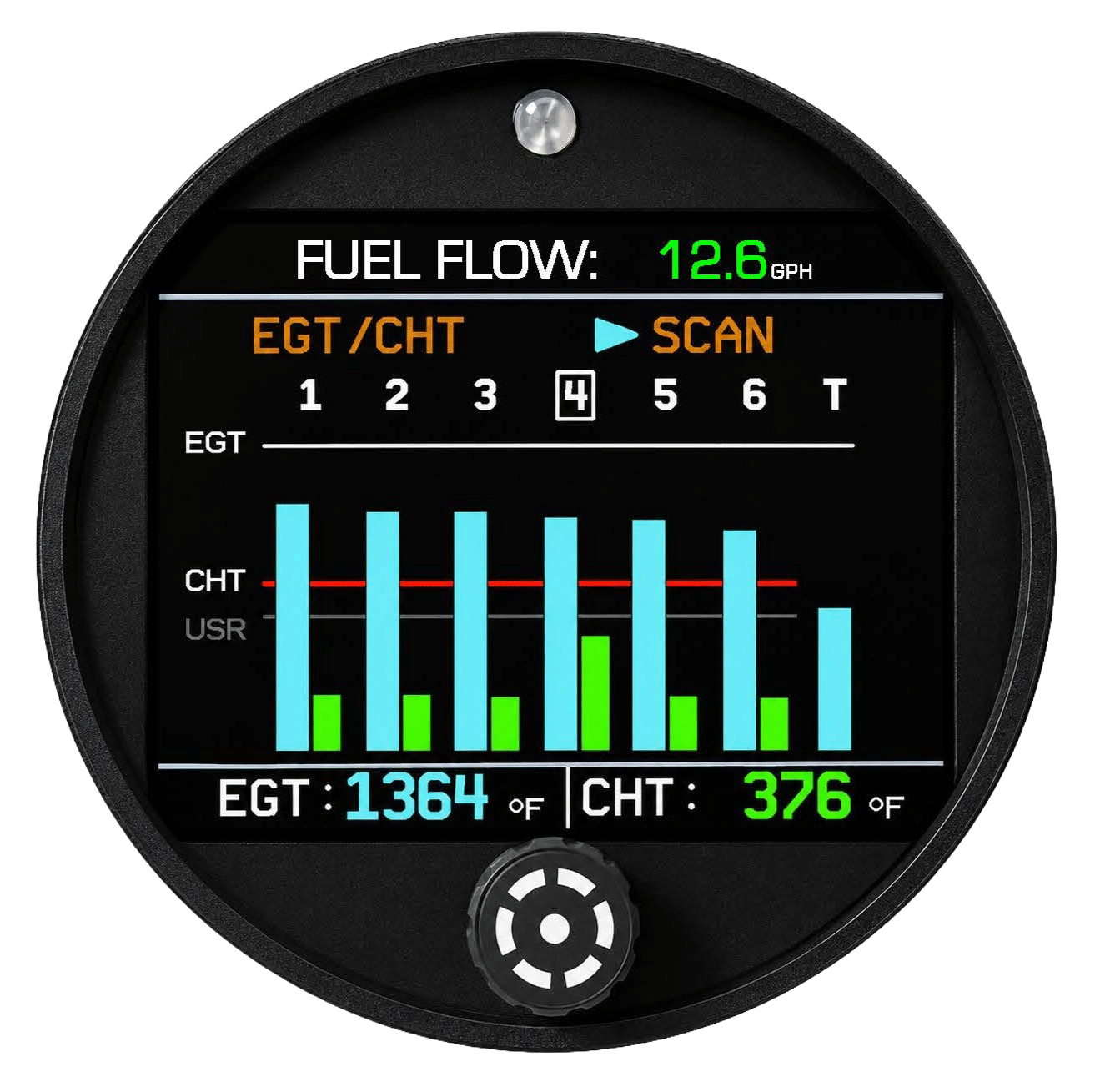

Full color TFT-based display and digital processing electronics.
Electronics International consistently has been a leader in digital engine instrumentation since 1979.

Data Recording of Every Flight

Records engine data for later review and troubleshooting with USB interface.
All monitored functions are stored every three seconds, to a total of 500 hours.

Questions?

Call (541) 318-6060

8am–4:30pm PST M–F

[mbhi location="Main"]

Or email us at: support@iflyei.com

Product Overview

UBG-16T Overview

Features

High-resolution monitoring for every cylinder in the familiar bargraph presentation.
Sunlight-readable with automatic or external dimming.
Communicates fuel-flow and totalizer information with compatible GPS systems.
Spot cylinder temperature trends quickly and clearly.
Monitors rapid CHT temperature changes.
Clear rich-of-peak and lean-of peak guidance, including GAMI spread assistance.
Custom interface harnesses connect the UBG-16T to compatible existing probes and
wiring from our system or even “the other guys”
TFT-based display and digital processing electronics.

Prices

UBG-16T Package Retail Prices

Complete packages Include:

1 – UBG-16T
4 or 6 – P-110R EGT Probes (quantity varies per package)
4 or 6 – P-100 CHT Probes (quantity varies per package)
1 – P-102-⅜ Piggy Pack Probe
8 or 12 – 8’ TC Cables (quantity varies per package)
1- 8’ Fuel Flow Cable
1 – Flow Transducer (either FT-60 or FT-90, depends on package)

Rebate available for a limited time!

Description

Package

Retail Price

1 UBG-16T Instrument, 4 P-110R EGT Probes, 4 P-100 CHT Screw-in probes, 1 P-102-3/8 Piggy Back Probe, 8 – 8′ TC Cables, 1 – 8′ 3 Conductor Cable and 1 – FT-60 Flow Transducer

UBG-16T-4-60

$2,600

$300 Rebate

1 UBG-16T Instrument, 4 P-110R EGT Probes, 4 P-100 CHT Screw-in probes, 1 P-102-3/8 Piggy Back Probe, 8 – 8′ TC Cables, 1 – 8′ 3 Conductor Cable and 1 – FT-90 Flow Transducer

UBG-16T-4-90

$2,600

$300 Rebate

1 UBG-16T Instrument, 6 P-110R EGT Probes, 6 P-100 CHT Screw-in probes, 1 P-102-3/8 Piggy Back Probe, 12 – 8′ TC Cables, 1 – 8′ 3 Conductor Cable and 1 – FT-60 Flow Transducer

UBG-16T-6-60

$2,990

$300 Rebate

1 UBG-16T Instrument, 6 P-110R EGT Probes, 6 P-100 CHT Screw-in probes, 1 P-102-3/8 Piggy Back Probe, 12 – 8′ TC Cables, 1 – 8′ 3 Conductor Cable and 1 – FT-90 Flow Transducer

UBG-16T-6-90

$2,990

$300 Rebate

Upgrade Packages Include:

1 – UBG-16T
1 – Conversion Harness (either 4 or 6 Cylinder)
4 – Cannon to D-Sub channel connectors (only in the -AC upgrade packages)

Description

Package

Retail Price

Upgrade Existing Old 4-Cly UBG-16 to New UBG-16T, Use Existing Probes, Cables, and Flow Transducers.

UBG-16T, 4-Cylinder Conversion Harness (UBG-DC-4), 4 Cannon to D-Sub channel connectors (2 wires per channel, to optionally connect to existing TIT and up to three other temperature inputs)

UBG-16T-4-AC

$1,900

Upgrade Existing Old 6-Cly UBG-16 to New UBG-16T, Use Existing Probes, Cables, and Flow Transducers.

UBG-16T, 6-Cylinder Conversion Harness (UBG-DC-6), 4 Cannon to D-Sub channel connectors (2 wires per channel, to optionally connect to existing TIT and up to three other temperature inputs)

UBG-16T-6-AC

$1,900

Upgrade Existing Old 4-Cly EDM to New UBG-16T, Use Existing Probes, Cables, and Flow Transducers.

UBG-16T, 4-Cylinder Conversion Harness (UBG-DE-4)

UBG-16T-4-AE

$1,900

Upgrade Existing Old 6-Cly EDM to New UBG-16T, Use Existing Probes, Cables, and Flow Transducers.

UBG-16T, 6-Cylinder Conversion Harness (UBG-DE-6)

UBG-16T-6-AE

$1,900

Upgrade Existing Old 4-Cly GEM to New UBG-16T, Use Existing Probes, Cables, and Flow Transducers.

UBG-16T, 4-Cylinder Conversion Harness (UBG-DG-4)

UBG-16T-4-AG

$1,900

Upgrade Existing Old 6-Cly GEM to New UBG-16T, Use Existing Probes, Cables, and Flow Transducers.

UBG-16T, 6-Cylinder Conversion Harness (UBG-DG-6)

UBG-16T-6-AG

$1,900

Optional Add On:

Add Fuel Flow to UBG-16T Upgrade Package, if you don’t have an existing Fuel Flow Transducer on your old instrument. Can be used for old UBG-16, EDM or GEM Upgrade packages.

Packages Include:

1 – Flow Transducer
1 – 8′ CBL-3C-8

Description

Package

Retail Price

FT-60 Flow Transducer and 8′ CBL-3C-8

FT-60-UBG

$430

FT-90 Flow Transducer and 8′ CBL-3C-8

FT-90-UBG

$430

Specifications

UBG-16T Specifications

Dimensions

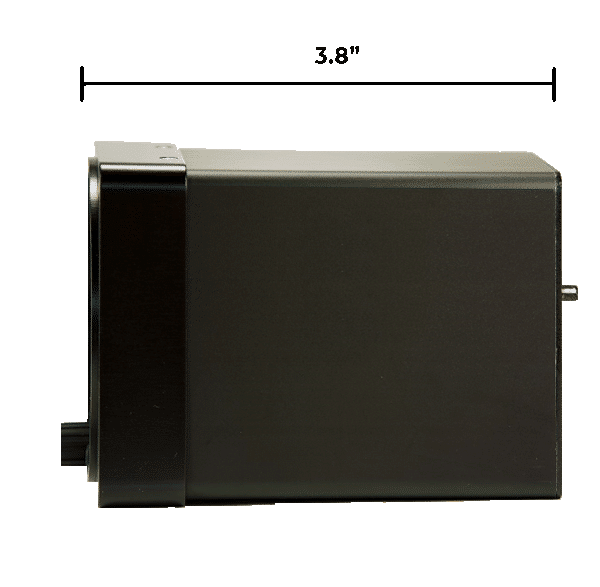

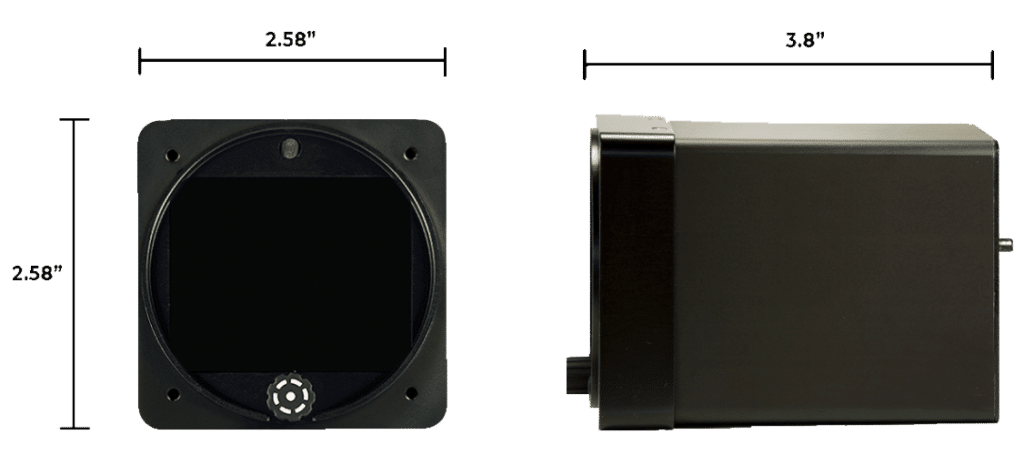

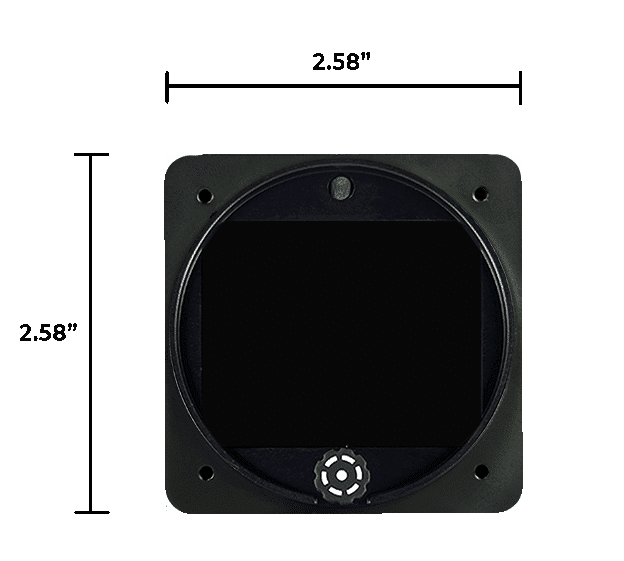

2.58″ x 2.58″ x 3.8 in.” Deep, 2 1/4″ Flush Mount

Weight

0.75 lb Instrument Only

Power Requirements

7.5 to 40 volts, Typical: 0.3 amps @ 12 Volts

Display

Full-color TFT display Sunlight-readable with automatic or external dimming and digital processing electronics

Probe Compatibility

Supports Type K or Type J, grounded or ungrounded temperature probes

USB Port

Data Download

Internal Storage

All monitored functions are stored every three seconds, to a total of 500 hours.

Certifications

FAA STC’d as Secondary Instrument
