- CA-1 Carb and OAT Instrument
CA-1 Carb and OAT Instrument
Product Overview
CA-1 Carb Overview
OAT and Carb Temp
Electronics International provides the budget-conscious pilot the option to monitor their Carburetor Temperature and Outside Air Temperature with the same precision found in the most advanced analyzers on the market, while not breaking the bank.
Ice Zone Warning

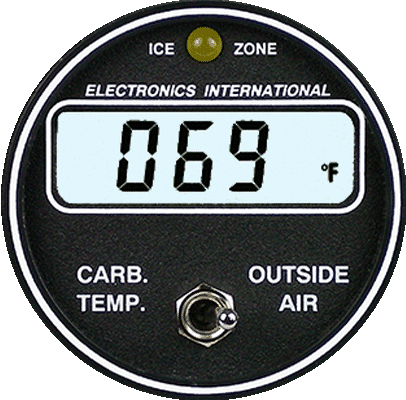

The CA-1 provides pilots with one channel of Carb Temp and one channel of OAT readings in a stable, one-degree digital format. An “Ice Zone” Warning Light alerts the pilot when either temperature is between 10 Degrees to 39 Degrees (Fahrenheit).
Prices
Retail Prices
Package includes:
- A-1 Carb Instrument
- 2 ea. P-128 Precision Probe
- 2 ea. XP-6′ Precision Thermocouple Cable
- Wire Harness
- Operating & Installation Instructions
CA-1 CARB TEMP & OAT
-
$532
Specifications
Specifications
Dimensions
2.5″ x 2.5″ x 2.65″ Deep, 2 1/4″ Flush Mount
Weight
7 oz. (Unit), 1.6 oz for a Temperature Probe & 2 oz for a 6′ Cable
Power Requirements
7.5 to 30 Volts, 1/10 Amp
Ice Zone Warning
Light is lit when displayed temperature is between 10’F and 39’F.
Display
Viewable in direct sunlight, with dimmable 12 and 24 volt backlight control lines.
Intensity Control
Separate intensity control lines allow you to independently control Ice Warning Zone and Backlight intensity.
Probes
Type K Thermocouple, Ungrounded
