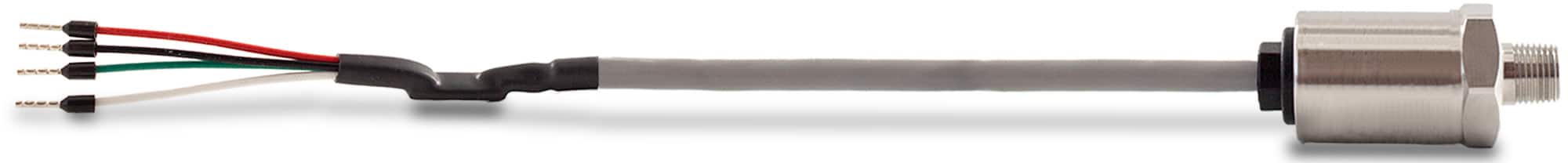

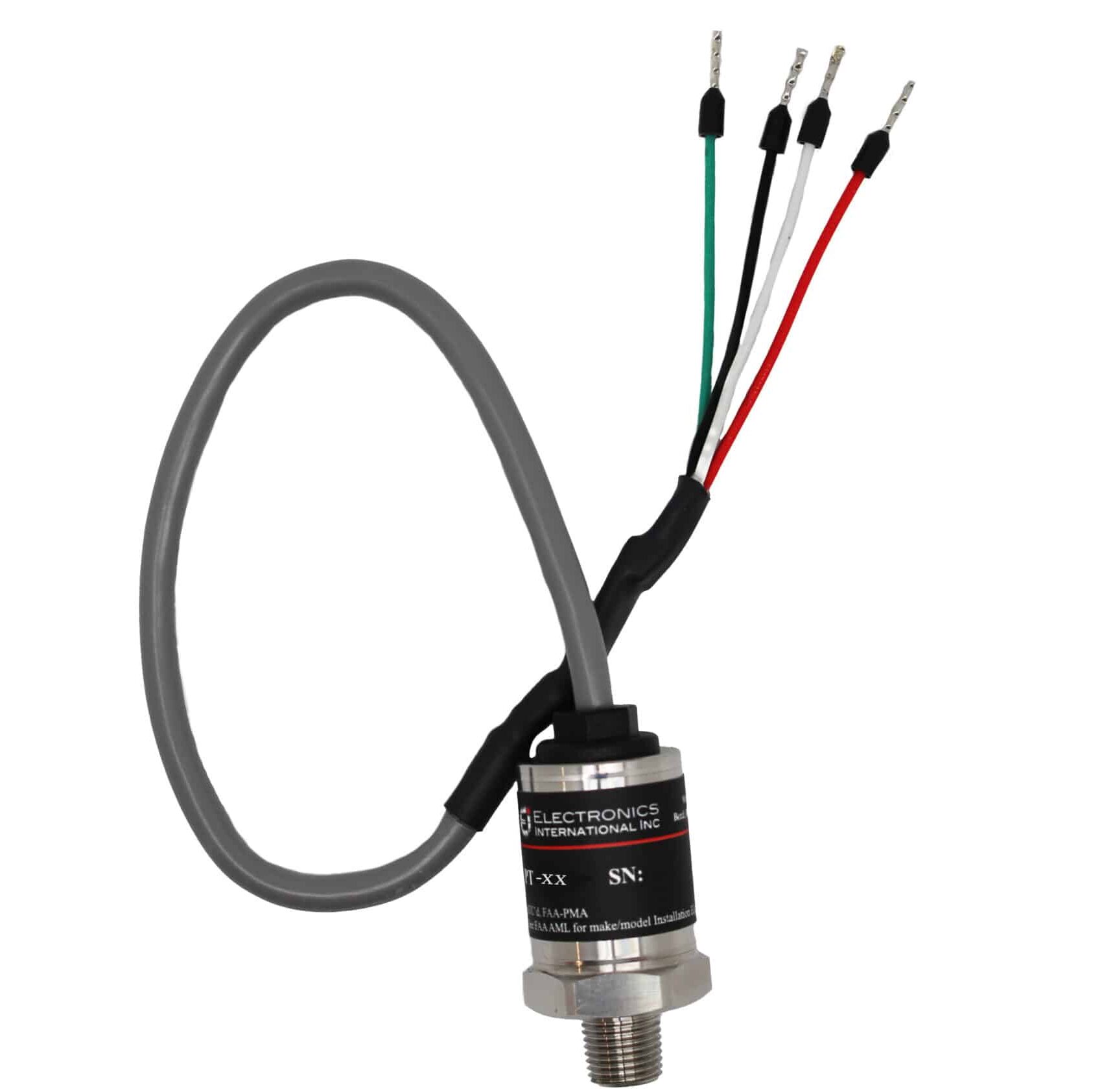

PT-100GA – T Torque Pressure Transducer

PT-100GA – T Torque Pressure Transducer

FAA Approved Instruments

  • FAA TSO’d, STC’d, PMA’d
  • Accurate and stable, precise pressure measurements.
  • Robust Construction, stainless steel body and pressure ports.
  • Perfected over decades of testing and field trials.
  • Other models available, see below for more details.

Product Overview

Model Comparison

Model PT-30GA PT-100GA PT-100GA-T Torque PT-300GA PT-3000S
Target Pressure 30 PSI 100 PSI 100 PSI 300 PSI 3,000 PSI
Proof Pressure 72 PSI 290 PSI 290 PSI 726 PSI 7,252 PSI
Burst Pressure 108 PSI 435 PSI 435 PSI 1,089 PSI 10,878 PSI
Pressure Type Gauge Gauge Gauge Gauge Gauge

Prices

Retail Price

Packages Include:

  • PT-100GA-T Pressure Transducer
  • Larger Mounting Clamp
  • Pressure Transducer Data Sheet
Description
Package
Retail Price

PT-100GA-T Pressure Transducer

PT-100GA-T

$380

Specifications

Specifications

Type

Gauge Pressure

Target Pressure

100 PSI

Over Pressure

290 PSI

Burst Pressure

435 PSI

Typical Accuracy

+/- 1%

dV (btwn GRN & WHT) @ Target PSI

50 mV

Material

304 SS

Power Supply

+5 VDC

Certifications

FAA TSO’d, STC’d, PMA’d
